C64DTV Keyboard and Joystick
Use this as much as you want, but please give proper credits.
Watch this space!
/Daniel Kahlin (tlr)
Key Matrix Issues

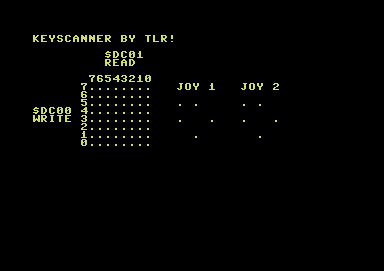

keymatrix.prg is a small program to test the keyboard matrix and the joystick ports. It works on the C64DTV and the original C64.
Known defects of the C64DTV PAL keymatrix are:
- F7 is not working at all (although F8 works)
- The left and right shift keys are swapped.
(Both were confirmed by Suschman 2005-11-29)
This is the keyboard mapping of an original C64 (as taken from Mapping The C64):
| | Bit 7 | Bit 6 | Bit 5 | Bit 4 | Bit 3 | Bit 2 | Bit 1 | Bit 0 |
| Bit 7 | STOP | Q | C= | SPACE | 2 | CTRL | <- | 1 |
| Bit 6 | / | ^ | = | RSHIFT | HOME | ; | * | £ |
| Bit 5 | , | @ | : | . | - | L | P | + |
| Bit 4 | N | O | K | M | 0 | J | I | 9 |
| Bit 3 | V | U | H | B | 8 | G | Y | 7 |
| Bit 2 | X | T | F | C | 6 | D | R | 5 |
| Bit 1 | LSHIFT | E | S | Z | 4 | A | W | 3 |
| Bit 0 | CRSR DN | F5 | F3 | F1 | F7 | CRSR RT | RETURN | DELETE |
|
